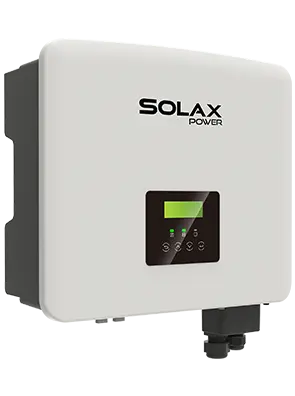

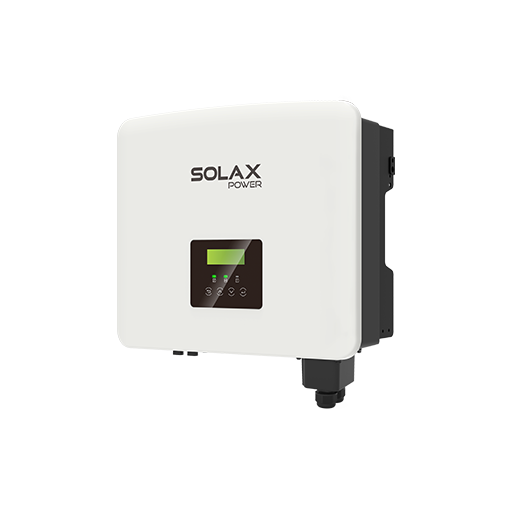

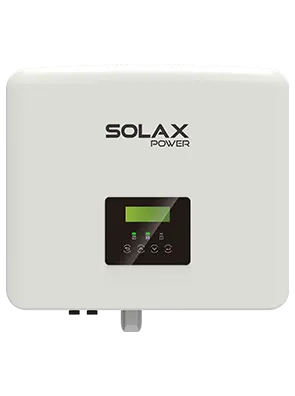

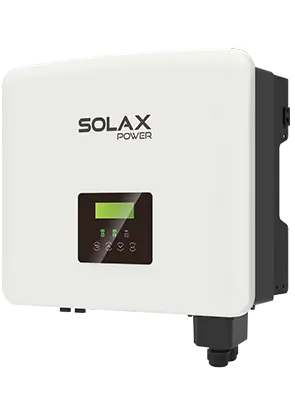

Hibrid inverter

X1-Hybrid G4

3,0 kW / 3,7 kW / 5,0 kW / 6,0 kW / 7,5 kW

Az X1-Hybrid G4 T30 akkumulátorral és a Matebox-szal kombinálva alkotja az X-ESS G4-et, egy átfogó energiatárolási megoldást. A SolaX hibrid inverter összekapcsolódik a hőszivattyúval és az intelligens EV-töltővel, így megbízható energiamegoldást kínál az otthonok számára.

Adatok letöltése

Termékelőny

Az X1-Hybrid G4 akár 200%-os napelem-túlméretezést is biztosít az optimális energiatermeléshez, és akár 97%-os hatékonyságot ér el a töltés és kisütés során. Emellett a SolaX hibrid inverter VPP-kompatibilis, és képes kiegészítő szolgáltatásokat nyújtani az energiapiacon, rugalmasságot biztosítva mind a hálózatra kapcsolt, mind a hálózaton kívüli energiatároló rendszerekhez.

Kapcsolat

Assured Reliability

Up to 150% EPS output for 10s
UPS-level switchover time<10ms
IP65 protection degree
Type II SPD on AC&DC side

High Performance

200% PV oversizing and up to 110% AC output
Up to 200% PV input
Up to 97% efficiency in charging and discharging
Low start-up voltage for longer operation

Flexible Adaptability

Lithium-ion & Lead-acid battery compatible
Max. 16A DC input current for high power solar panel
On-grid and off-grid parallel function, up to 15kW

Smart Management

VPP ready, ancillary service in power market
Global MPP scan for optimal energy harvest
Smart loads management (e.g., heat pump, smart EV charger)
Intelligent ToU-driven energy management
CT compatibility with fast load response in just 0.3 seconds

Termékparaméterek

X1-HYBRID-3.0-D
X1-HYBRID-3.7-D
X1-HYBRID-5.0-D
X1-HYBRID-6.0-D
X1-HYBRID-7.5-D

X1-HYBRID-3.0-D
- PV INPUT

  Max. recommended PV array power 6.0 kWp
  MPPT voltage range 70~550 V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 3000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power 3000 VA
  Peak EPS output power 6000 VA, 10 s
  Switchover time <10ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 482 x 417 x181 mm
  Net Weight 24 kg
X1-HYBRID-3.7-D
- PV INPUT

  Max. recommended PV array power 7.4 kWp
  MPPT voltage range 70~550 V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 3680 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power 3680 VA
  Peak EPS output power 6000 VA, 10 s
  Switchover time <10
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 482 x 417 x181 mm
  Net Weight 25 kg
X1-HYBRID-5.0-D
- PV INPUT

  Max. recommended PV array power 10.0 kWp
  MPPT voltage range 70~550 V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power
  5000 W
  (Gemmany 4600 W, AU 4999 W)
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power 5000 VA
  Peak EPS output power 7500 VA, 10 s
  Switchover time <10>
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 482 x 417 x181 mm
  Net Weight 24 kg
X1-HYBRID-6.0-D
- PV INPUT

  Max. recommended PV array power 12.0 kWp
  MPPT voltage range 70~550 V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 6000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power 6000 VA
  Peak EPS output power 9000 VA, 10 s
  Switchover time <10>
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 482 x 417 x181 mm
  Net Weight 24 kg
X1-HYBRID-7.5-D
- PV INPUT

  Max. recommended PV array power 15.0 kWp
  MPPT voltage range 70~550 V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 7500 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power 7500 VA
  Peak EPS output power 11250 VA, 10 s
  Switchover time <10>
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 482 x 417 x181 mm
  Net Weight 25 kg
