Lakossági akkumulátorok

T-BAT-SYS-LV-R25

2,5 kWh – 40,9 kWh

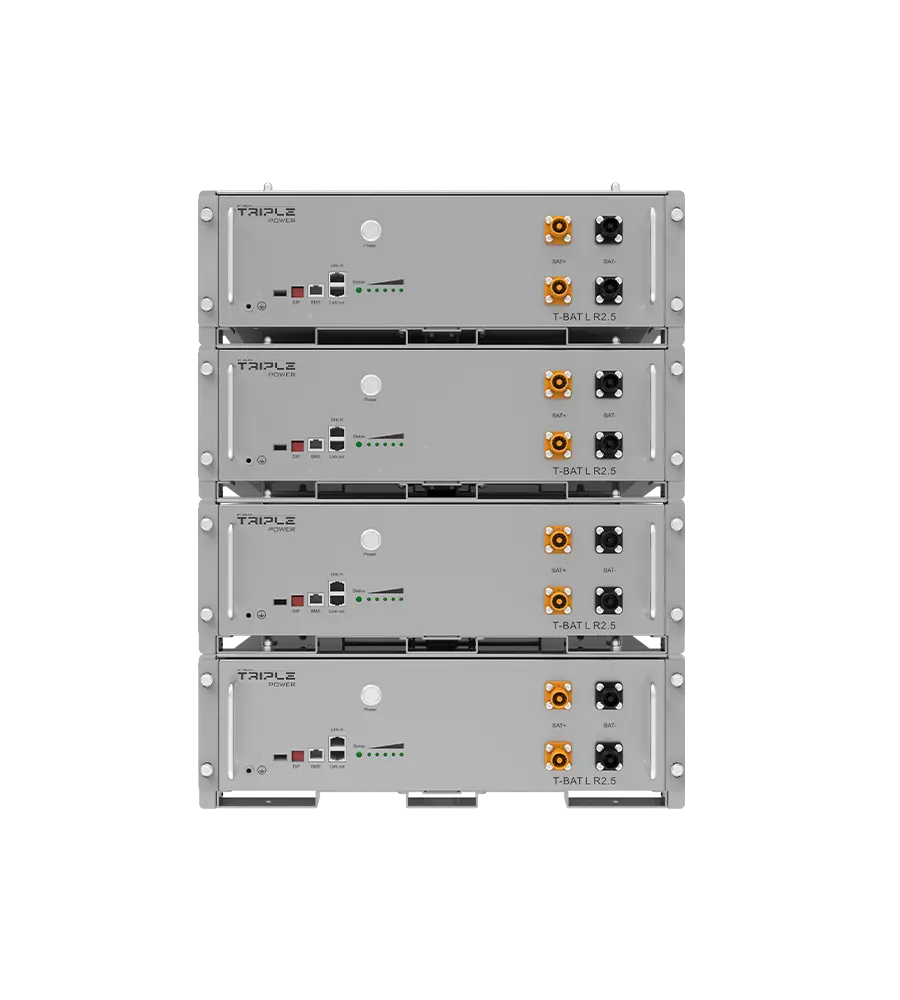

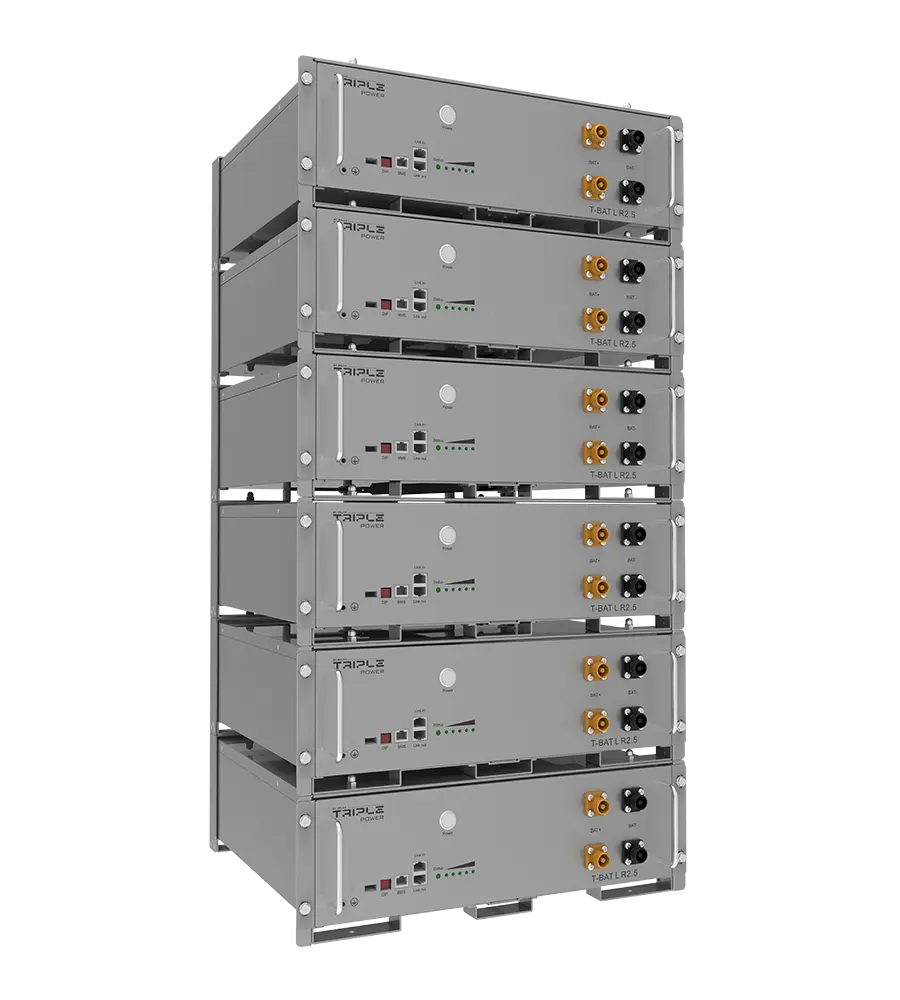

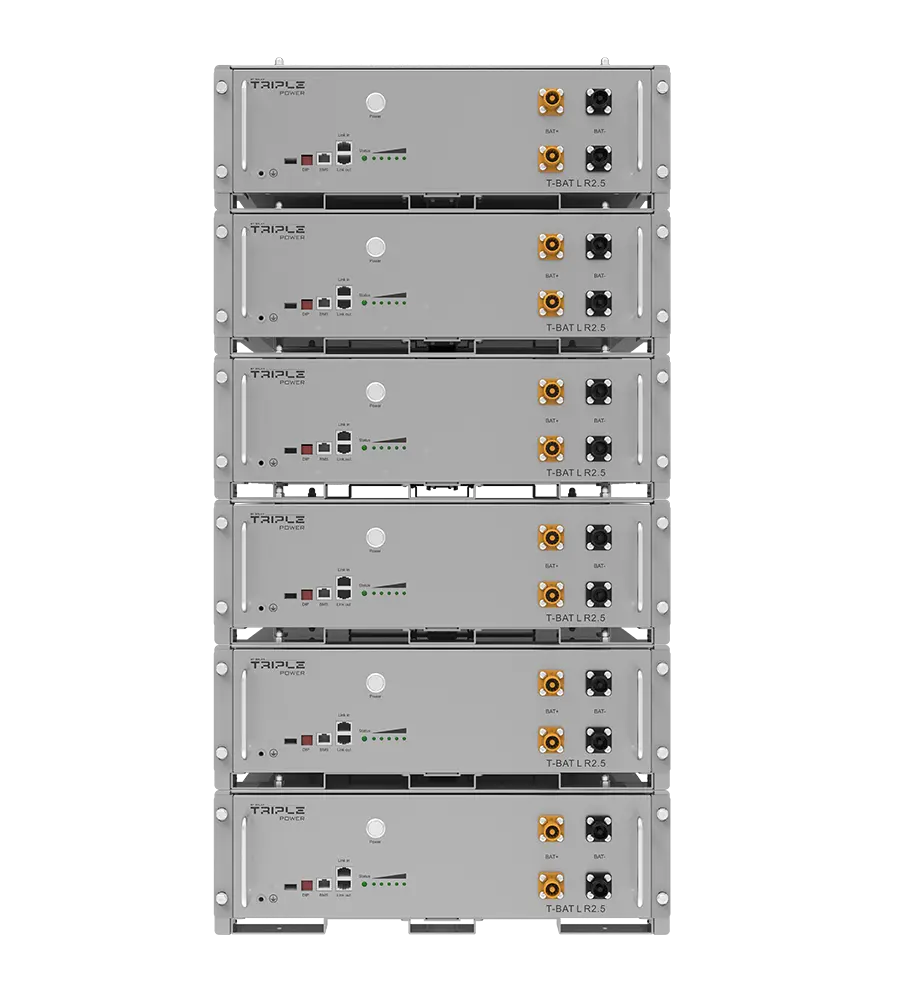

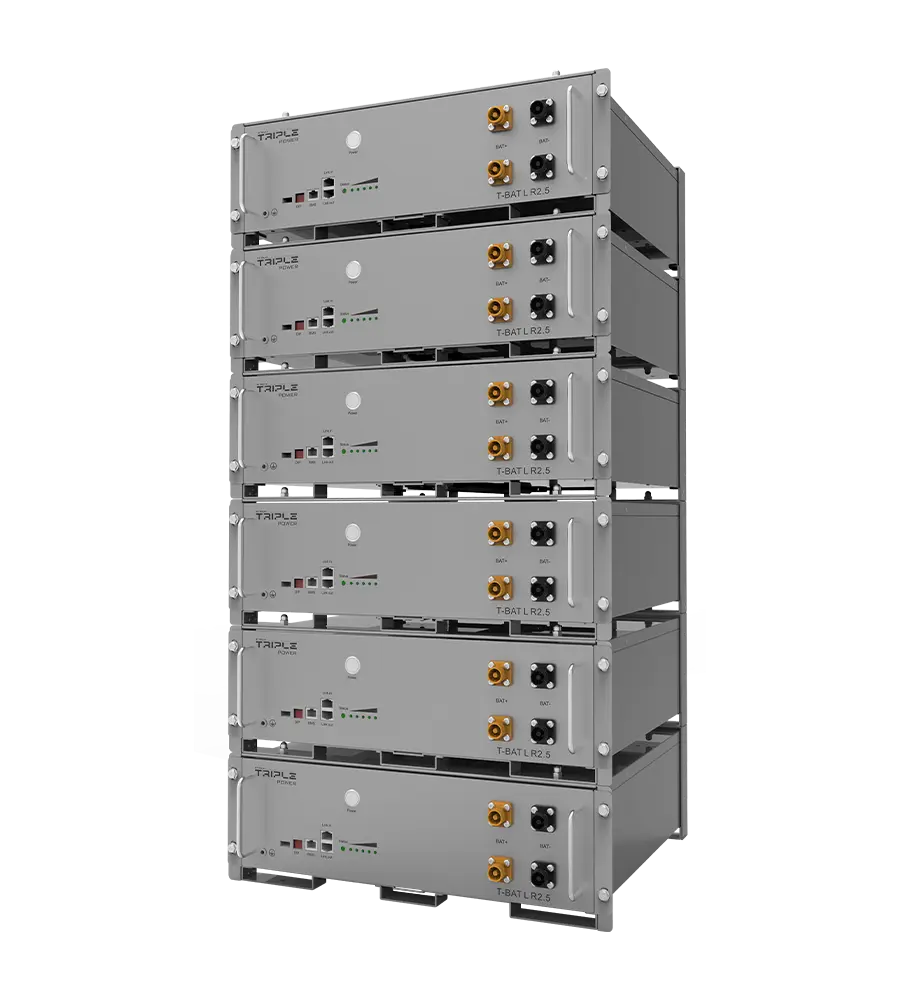

A SolaX T-BAT-SYS-LV R25 egy alacsony feszültségű akkumulátor, amelyet lakossági energiatárolásra terveztek. Biztonságos LFP technológiával működik, és széles, 2,5 kWh-tól 40,9 kWh-ig terjedő kapacitástartományt kínál. Az X1 HYBRID LV inverterrel együtt használva ideális választás azoknak a háztulajdonosoknak, akik megbízható és bővíthető napenergia-tárolást keresnek.

Videó megtekintése
Adatok letöltése

Termékelőny

A T-BAT-SYS-LV R25 több mint 6000 ciklus élettartamot kínál, ezzel biztosítva a hosszú élettartamot és az energiahatékony átvitelét. Az akkumulátor IP20 védelme és a lágyindítási funkciója megóvja a rendszert a hirtelen áramlökésektől. Moduláris, egymásra építhető kialakítása egyszerű rugalmasságot biztosít, legyen szó falra, tartóra vagy szekrénybe történő szerelésről.

Kapcsolat

Assured Reliability

LiFePO4 battery cell & high-performance processors
IP20 protection degree
Soft start to protect from BAT and INV a sudden surge

High Performance

Cycle life > 6000 times
High capacity utilization
Efficient energy transfer

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Wall quick bracket, or cabinet mounting optional
Easy to scale up

Termékparaméterek

T-BAT LR2.5
T-BAT LR5.0
T-BAT LR7.5
T-BAT LR10.0
T-BAT LR12.5
T-BAT LR15.0
T-BAT LR17.5
T-BAT LR20.0
T-BAT LR22.5
T-BAT LR25.0
T-BAT LR27.5
T-BAT LR30.0
T-BAT LR32.5
T-BAT LR35.0
T-BAT LR37.5
T-BAT LR40.0

T-BAT LR2.5
- SYSTEM DATA

  Number of modules 1 Module
  Nominal capacity 2.5 kWh
  Max.output current 50 A
  Peak discharge current
  60 A (60 s)
  100 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR5.0
- SYSTEM DATA

  Number of modules 2 Module
  Nominal capacity 5.1 kWh
  Max.output current 85 A
  Peak discharge current
  120 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR7.5
- SYSTEM DATA

  Number of modules 3 Module
  Nominal capacity 7.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR10.0
- SYSTEM DATA

  Number of modules 4 Module
  Nominal capacity 10.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR12.5
- SYSTEM DATA

  Number of modules 5 Module
  Nominal capacity 12.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR15.0
- SYSTEM DATA

  Number of modules 6 Module
  Nominal capacity 15.3 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR17.5
- SYSTEM DATA

  Number of modules 7 Module
  Nominal capacity 17.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR20.0
- SYSTEM DATA

  Number of modules 8 Module
  Nominal capacity 20.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR22.5
- SYSTEM DATA

  Number of modules 9 Module
  Nominal capacity 23.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR25.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal capacity 25.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR27.5
- SYSTEM DATA

  Number of modules 11 Modules
  Nominal capacity 28.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR30.0
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal capacity 30.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR32.5
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal capacity 33.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR35.0
- SYSTEM DATA

  Number of modules 14 Modules
  Nominal capacity 35.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR37.5
- SYSTEM DATA

  Number of modules 15 Modules
  Nominal capacity 38.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR40.0
- SYSTEM DATA

  Number of modules 16 Modules
  Nominal capacity 40.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
