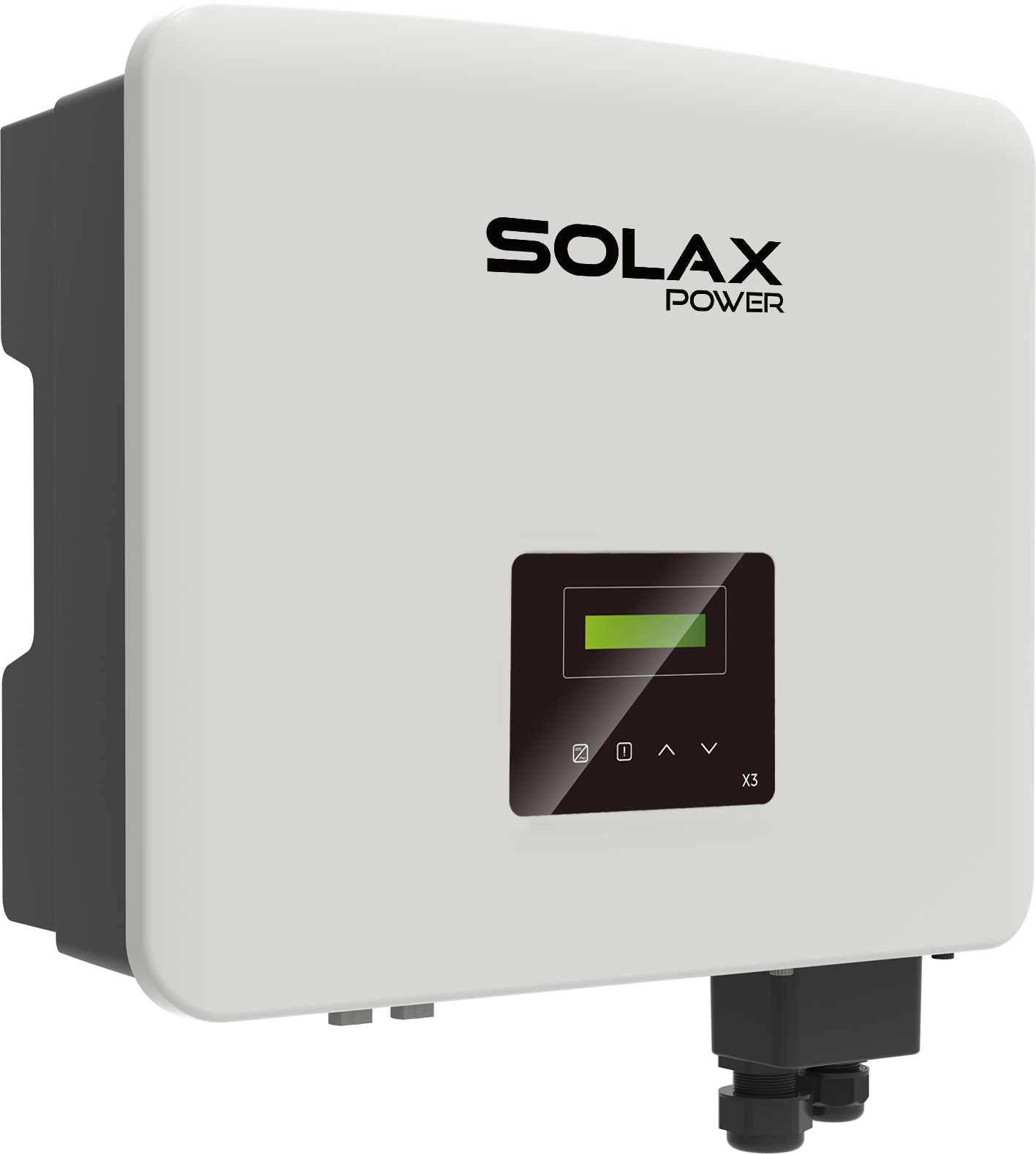

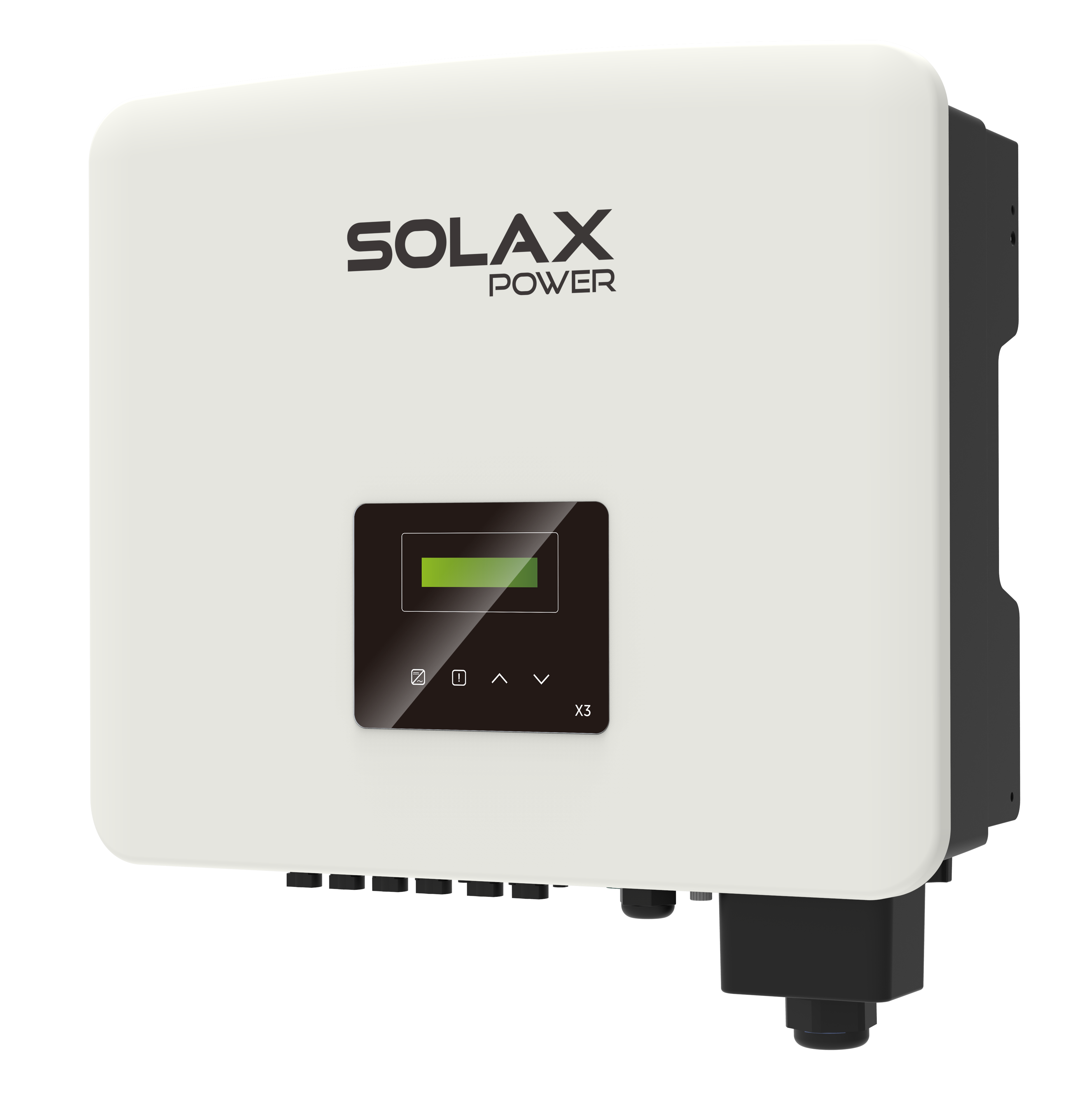

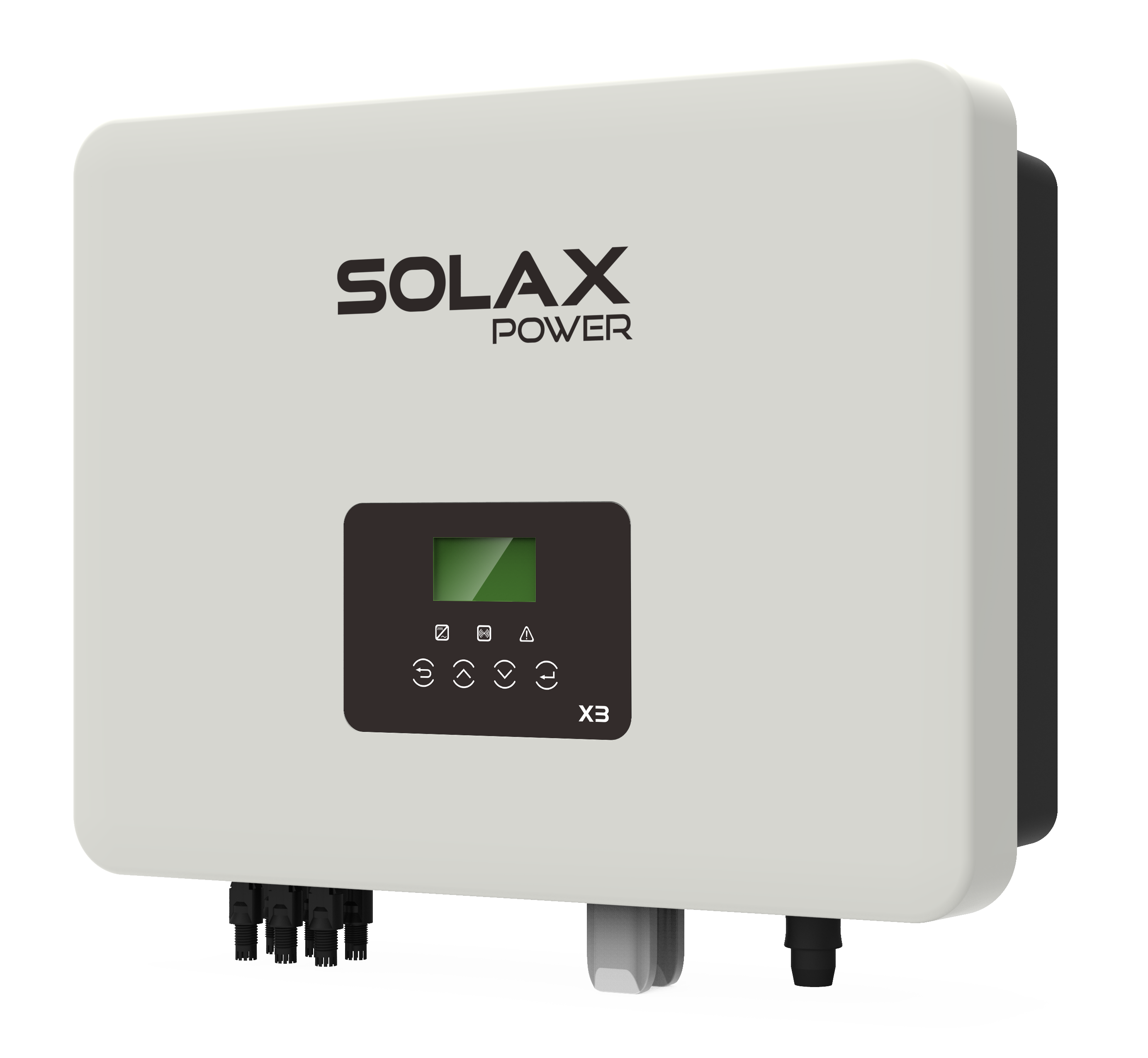

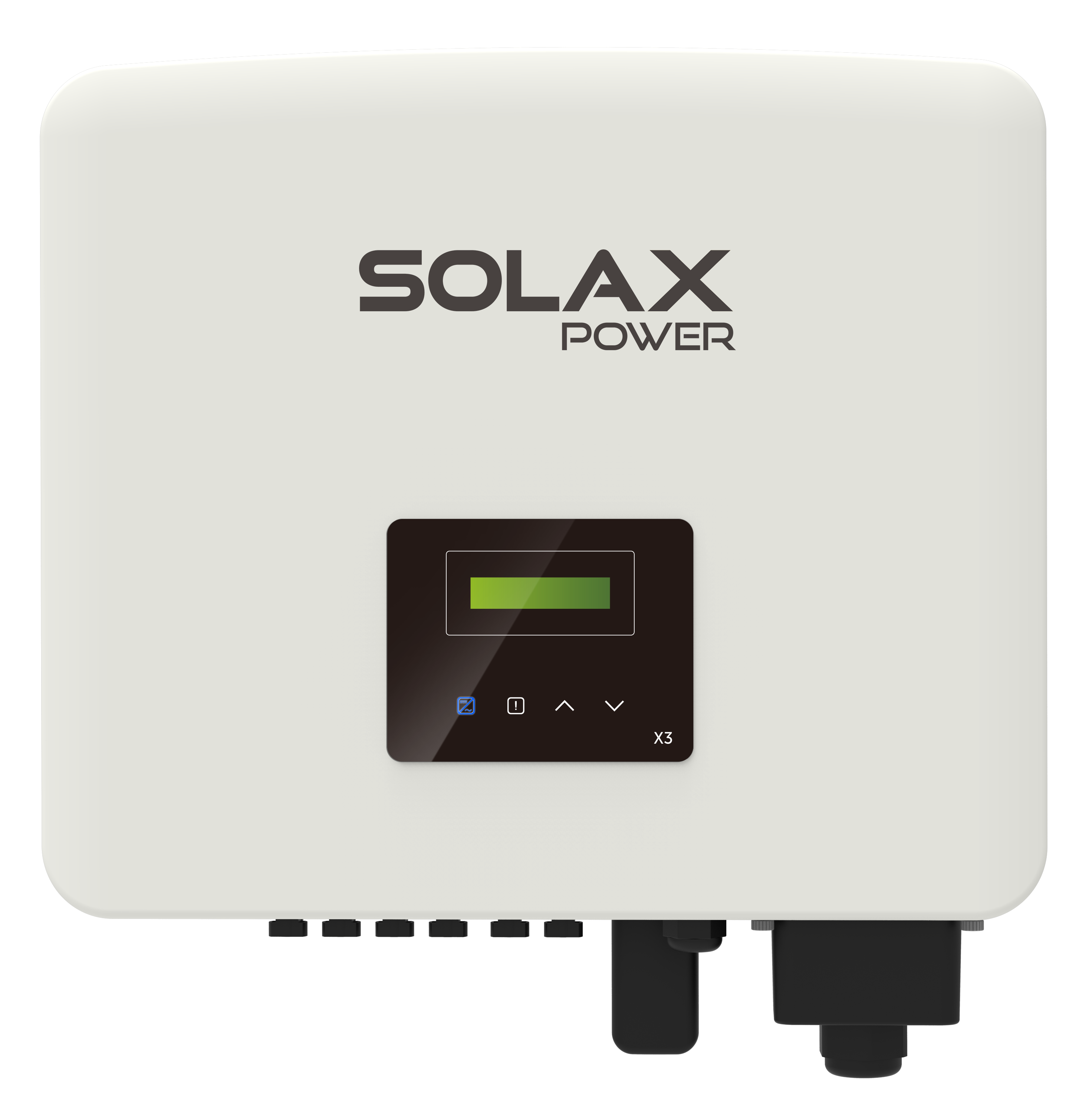

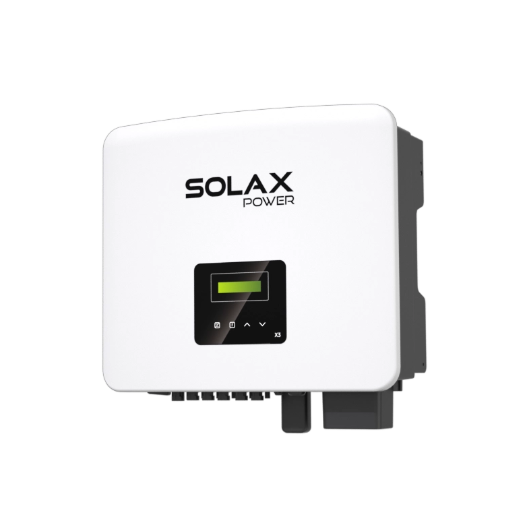

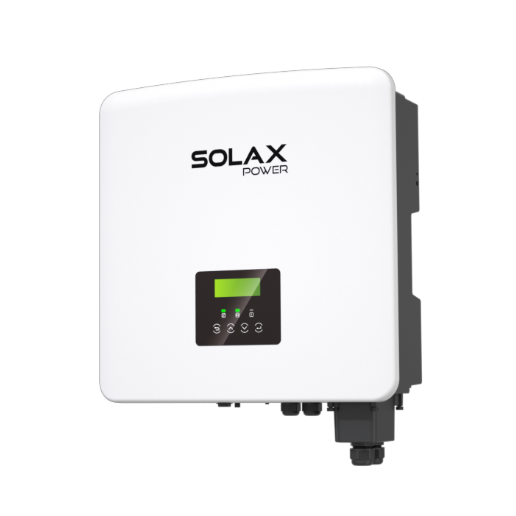

Háromfázisú inverter

X3-PRO G2

8kW / 10kW / 12kW / 15kW / 17kW / 20kW / 25kW / 30kW

Az X3-PRO G2 inverter (8–30 kW) rugalmas teljesítményopciókat kínál lakossági és kereskedelmi használatra. Beépített exportkontrollt és intelligens terheléskezelést biztosít hőszivattyúk és EV töltők számára. IP66 védettsége és nagy teljesítménysűrűsége megbízható működést garantál bármilyen környezetben.

Adatok letöltése

Termékelőny

Az X3-PRO G2 akár 98,5%-os hatékonyságot nyújt, 150%-os DC túlméretezést és 110%-os AC túlterhelést támogatva, optimalizálva a napenergia kihasználást. 32 A MPP-nyomkövetőnként, globális MPP szkenneléssel és széles MPPT feszültségtartománnyal maximális energiatermelést biztosít még gyenge fény vagy változó körülmények között is.

Kapcsolat

Assured Safety

Type II SPD on AC & DC side
AFCI support (optional)*

Flexible Adaptability

Built-in export power control function
Ultra-high power density

Intelligent Design

IP66 ingress protection
24h monitoring (WiFi / LAN / 4G)
Smart loads management (e.g. heat pump, smart EV charger)

High Efficiency

Up to 98.5% efficiency
32A per MPP tracker
150% DC oversizing & 110% AC overloading output
Built-in global MPP scan
Low start up voltage & ultra-wide MPPT range

Termékparaméterek

X3-PRO-8K-G2
X3-PRO-10K-G2
X3-PRO-12K-G2
X3-PRO-15K-G2
X3-PRO-17K-G2
X3-PRO-20K-G2
X3-PRO-25K-G2
X3-PRO-30K-G2

X3-PRO-8K-G2
- PV INPUT

  Max. recommended PV array power
  12.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  8kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-10K-G2
- PV INPUT

  Max. recommended PV array power
  15.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  10kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-12K-G2
- PV INPUT

  Max. recommended PV array power
  18.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  12kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-15K-G2
- PV INPUT

  Max. recommended PV array power
  22.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  15kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-17K-G2
- PV INPUT

  Max. recommended PV array power
  25.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  17kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-20K-G2
- PV INPUT

  Max. recommended PV array power
  30.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  20kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-25K-G2
- PV INPUT

  Max. recommended PV array power
  37.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  25kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
X3-PRO-30K-G2
- PV INPUT

  Max. recommended PV array power
  45.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  30kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
